Nguồn: (4) 90 - 250 VAC, 47 - 63 Hz,
(5) 11 - 26 VAC / VDC, SELV, Limited Energy,
Ngõ vào:
(1) Standard Input
Thermocouple: J, K, T, E, B, R, S, N, L, C, P
RTD: PT100 DIN, PT100 JIS
mV: 0 - 60mV
(2) Voltage 0-1 V
(3) Voltage 0-10 V
(4) Current 0-20 mA
(9) Special Order
Resolution: 18 bits
Tỷ lệ lấy mẫu: 5 times / second
Maximum Rating: -2 VDC minimum, 12 VDC maximum
Temperature Effect: ±1.5 uV/ °C/ input ±3.0 uV/ °C for mA input
Sensor Lead Resistance Effec :
T/C: 0.2uV/ohm
3-wire RTD: 2.6 °C/ohm of resistance difference of two leads
2-wire RTD: 2.6 °C/ohm of resistance sum of two leads
Burn-out Current: 200nA
Common Mode Rejection Ratio ( CMRR ) : 120dB
Normal Mode Rejection Ratio ( NMRR ) : 55dB
|
# |
Sensor Break Detection |
|
1 |
Sensor open for TC, RTD and mV inputs, |
|
2 |
Sensor short for RTD input, |
|
3 |
Below 1 mA for 4-20 mA input, |
|
4 |
Below 0.25V for 1 - 5 V input, unavailable for other inputs. |
Sensor Break Responding Time :
Within 4 seconds for TC, RTD and mV inputs,
0.1 second for 4-20 mA and 1 - 5 V inputs.
Độ chính xác: ±2% of span - Thermocouple
±0.4% of span - RTD
±0.05% of span - mV, mA, V
Ngõ ra: Đa dạng tín hiệu cho người dùng chọn lựa.
| 1 | Form A relay 2A / 240VAC |
| 2 | Relay rated 2A / 240VAC |
| 3 | Pulsed voltage to drive SSR, 5V / 30mA |
| 4 | Triac output, 1A / 240VAC, SSR |
| 5 | Isolated 20V/25mA DC Output Power Supply |
| 6 | Isolated 12V/40mA DC Output Power Supply |
| 7 | Isolated 5V/80mA DC Output Power Supply |
| 8 | A: RS-485 |
| 9 | B: Event input |
| 10 | C: Pulsed voltage to drive SSR, 14V/40mA |
| 11 | D: Retransmit 4-20mA / 0-20mA |
| 12 | E: Retransmit 1-5V / 0-5V |
| 13 | F: Retransmit 0-10V |
Communication
Interface : RS-232 ( 1 unit ), RS-485 ( up to 247 units )
Protocol : Modbus Protocol RTU mode
Kích thước: 48(W) x 48(H) x 116(D)mm x 105mm (depth behind panel)
Panel cutout: 45 x 45 mm
Trọng lượng P91 : 150 grams

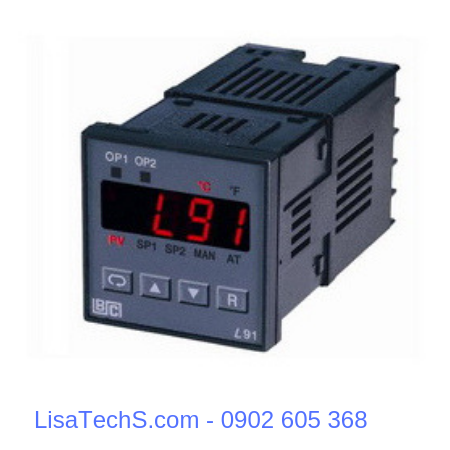

| Ordering Code: L91 | (1) | (2) | (3) | (4) |
| (1) | Power input | (3) | Output 1 |
| (2) | Signal Input | (4) | Output 2 |
Download catalog L41 & L91Click tại đây
Download Ordering Form- L41 & L91Click tại đây
