Nguồn: (4) 90 - 250 VAC, 47 - 63 Hz,
(5) 11 - 40 VDC / 20-28 VAC, 47-63Hz
Ngõ vào: (1) Standard input
|
Sensors / RTD Thermocouples |
Thermocouples các loại như J, K, T, E, B, R, S, N, L, U, P, C, D RTD: PT100( DIN), Pt100(JIS), Current (mA), Voltage (Volts) |
|
Sensor Lead Resistance Effect |
Thermocouple: 0.2 µV /Ω; 3-wire RTD: 2.6°C /Ω of Difference of Resistance of two leads 2-wire RTD: 2.6°C /Ω of Sum of Resistance of two leads |
|
Sensor Break Responding Time |
Thermocouple và RTD inputs: 4 giây 4-20mA and 1 - 5V inputs : 0.1 giây |
Độ chính xác: ±2% of span - Thermocouple
±0.4% of span - RTD
±0.05% of span - mV, mA, V
Ngõ ra: Đa dạng tín hiệu cho người dùng chọn lựa.
| 1 | 1 CT Input and Remote Setpoint | 10 | Isolated 4 - 20mA / 0 - 20mA (OM98-3) |
| 2 | 2 CT Inputs and Remote Setpoint | 11 | Ramp & Soak Profiler |
| 3 | 6 Event Inputs | 12 | Retransmit 0 - 10V (CM98-5) and Remote Setpoint |
| 4 | Alarm 4, Retransmit 4-20 mA/ 0-20mA(CM98-3) and Remote Setpoint 4: Alarm 4, Retransmit 0-10V (CM98-5) and Remote Setpoint | 13 | Retransmit 4 - 20mA / 0 - 20mA (CM98-3) and Remote Setpoint |
| 5 | Form A Relay | 14 | RS-485 and Remote Setpoint |
| 6 | Form A Relay | 15 | SSRD, 14V/40mA (OM94-7) |
| 7 | Form A Relay on Alarm 2 | 16 | SSRD, 5V/30mA |
| 8 | Form A Relay on Alarm 2 to 3 | 17 | Terminal Cover |
| 9 | Isolated 0 - 10V (OM98-5) | 19 | Terminal cover and Ramp & Soak Profiler |
Communication
Interface: RS-485
Protocol: Modbus RTU (Slave Mode)
Address: 1 to 247
Baudrate: 2.8KBPS to 115.2 KBPS
Stop Bit: 1 or 2 Bits
Data Length: 7 or 8 Bits
Communication Buffer: 160 Bytes
Kích thước:

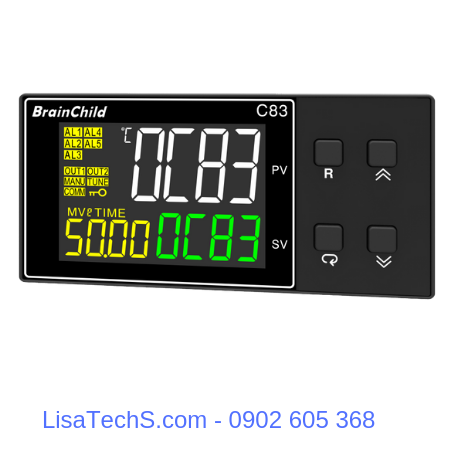

Bộ điều khiển nhiệt C83: 96(W) x 48(H) x 59(D), 50 mm depth behind panel
Panel cutout C83: cutout 92 x 45 ( mm )
Trọng lượng bộ điều khiển C83: 220 grams
|
|
|
| Ordering Code: Bộ C83 | (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) |
| Ordering Code- Bộ điều khiển nhiệt: C82-C83-C72-C42 | |
| (1) | Power input |
| (2) | Output 1 |
| (3) | Output 2/ Alarm 1 |
| (4) | Alarm 2 to 3 |
| (5) | Event inputs |
| (6) | Option 1 |
| (7) | Option 2 |
| (8) | Option 3 |
| (9) | Option 4 |
Download catalog C22, C62, C82, C83, C72, C42, R22 Click tại đây
Download Ordering Form- C22, C62, C82, C83, C72, C42, R22 Click tại đây
